EicolinkEicolink is an integrated combination system with a wireless connection between hob and cooker hood. The system is controlled with a remote in the hob, which can operate the cooker hoods fitted with the Eicolink logo. The cooker hood and hob can also be installed individually and will then function as normal units. It is always possible to operate the cooker hood manually.
Model with external engineThe cooker hood can be installed with an external engine, that can be placed on the ceiling or on an outside wall.
Delayed switch-off - 10 minA part of EICO's products utilises delayed switch-off, a timer-function which starts after the cooking ends, and automatically turns off after a set amount of time.
Perimeter aspirationWith perimeter aspiration, the air is effectively and quietly sucked up through narrow furrows in the ornamental panel.

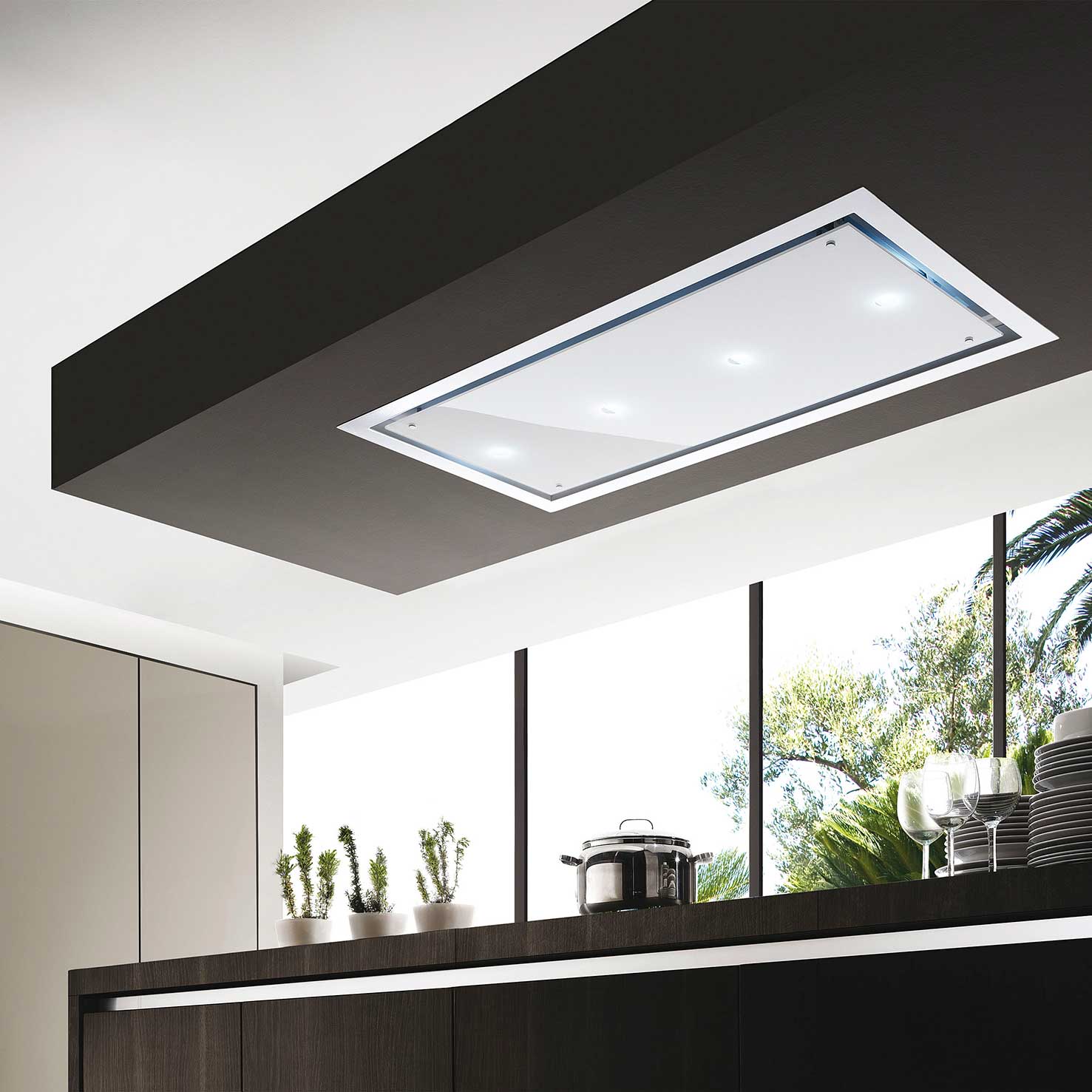

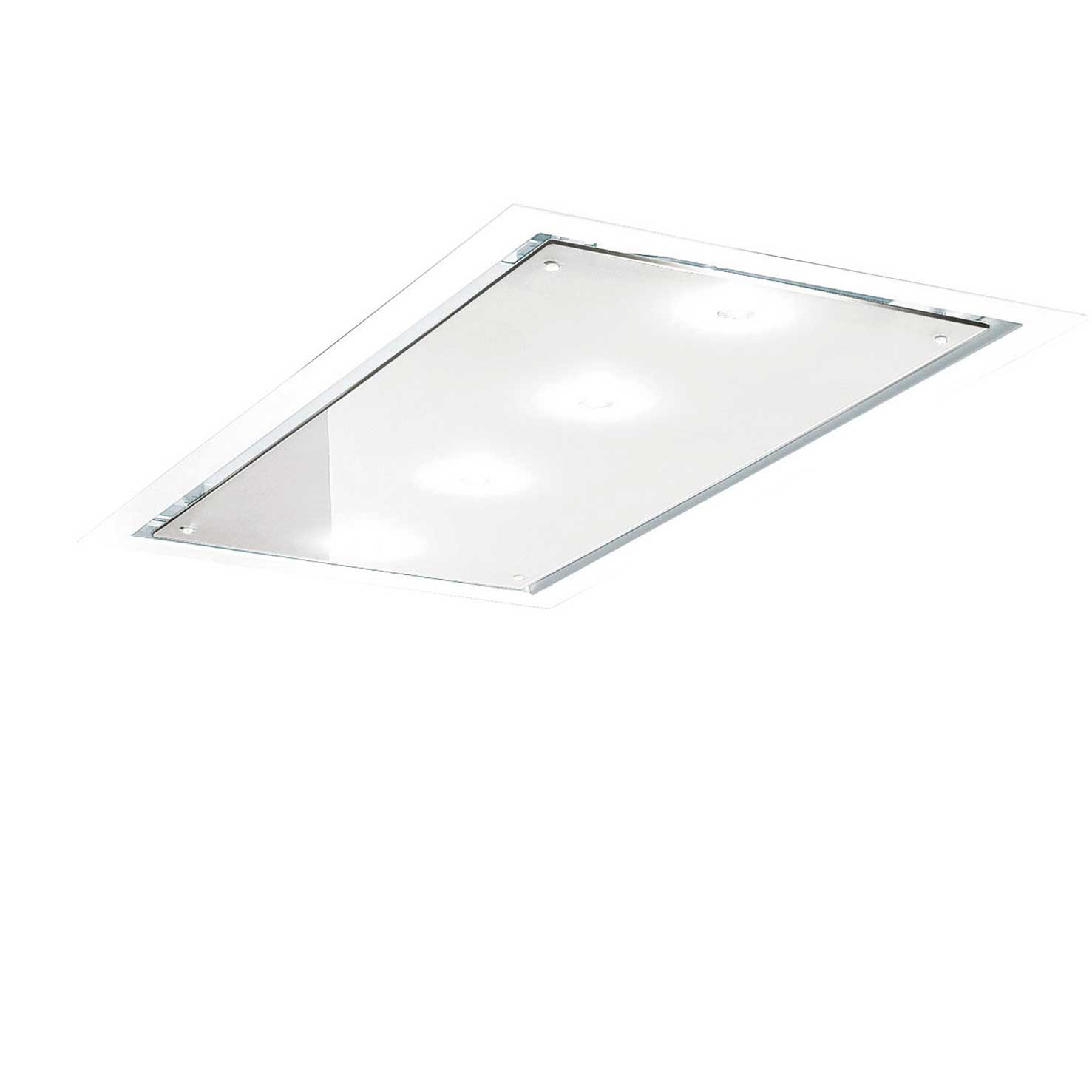

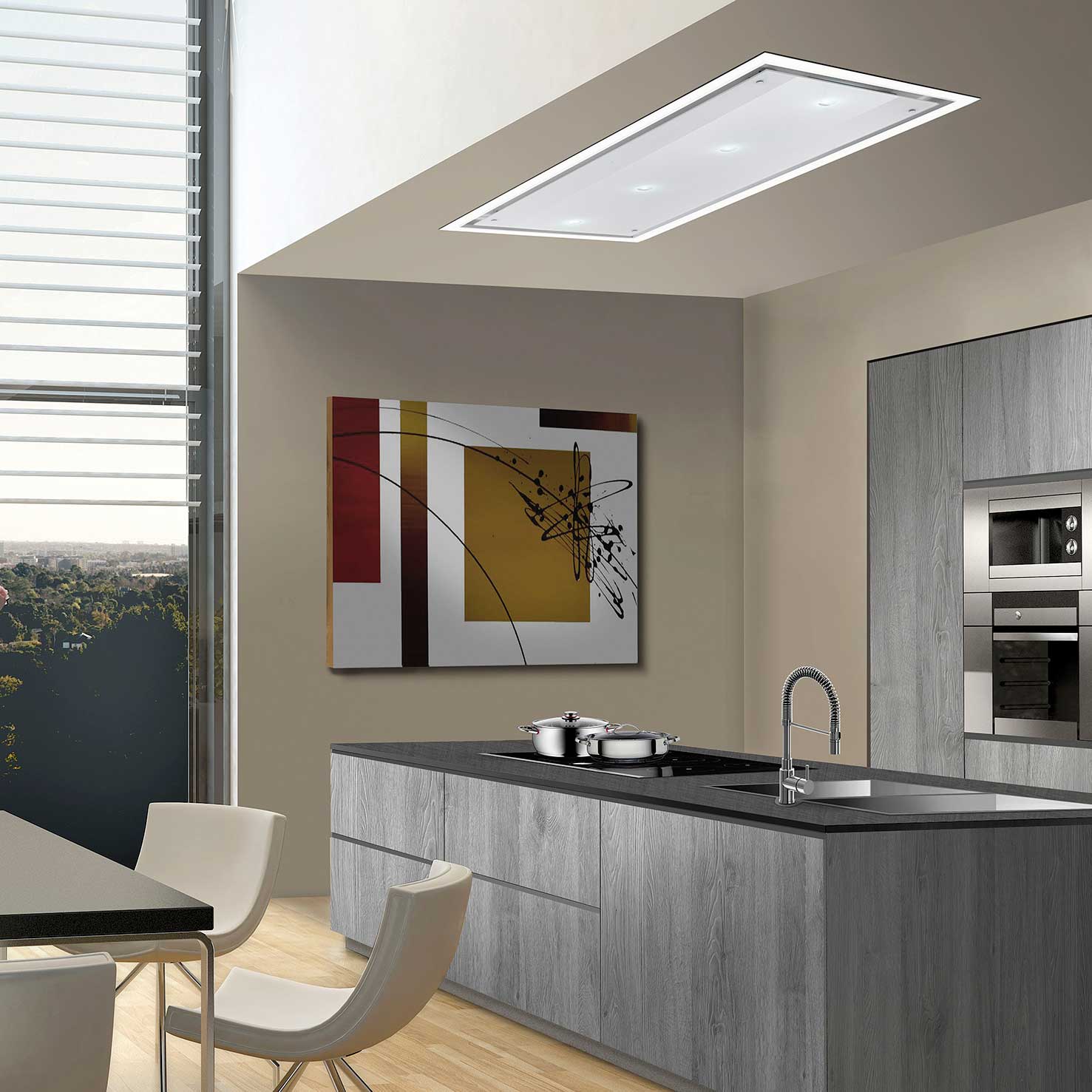

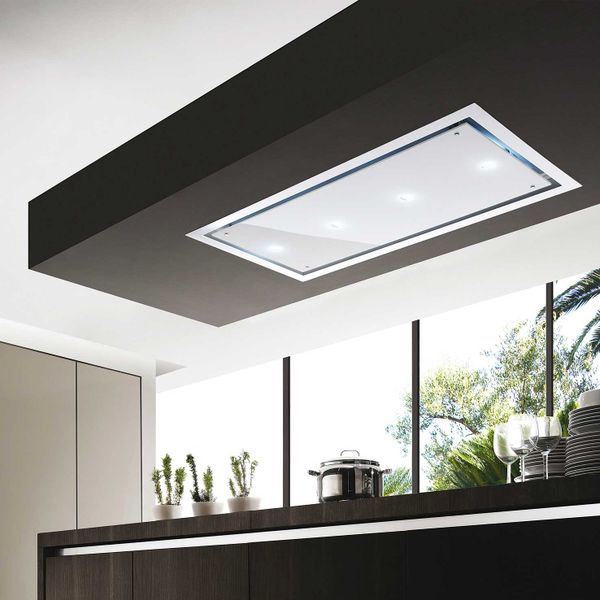

Distante 120 W SM – Link is a wide ceiling hood in Crystal White glass for external motor (sold separately). Features angled perimeter suction and EicoLink for wireless control. Supplied with remote control, after-run (10 min) and filter indicator. Airflow 250–574 (830) m³/h, 61 dB(A).
Features
Highlights:
Cooker hood for internal fitting in ceiling
Eicolink
Model with external engine
Air outlet is an option from all sides and up
65° angled ventilation for quicker extraction rate
Delayed switch-off - 10 min
Perimeter aspiration
Indicator for cleaning/change of filters

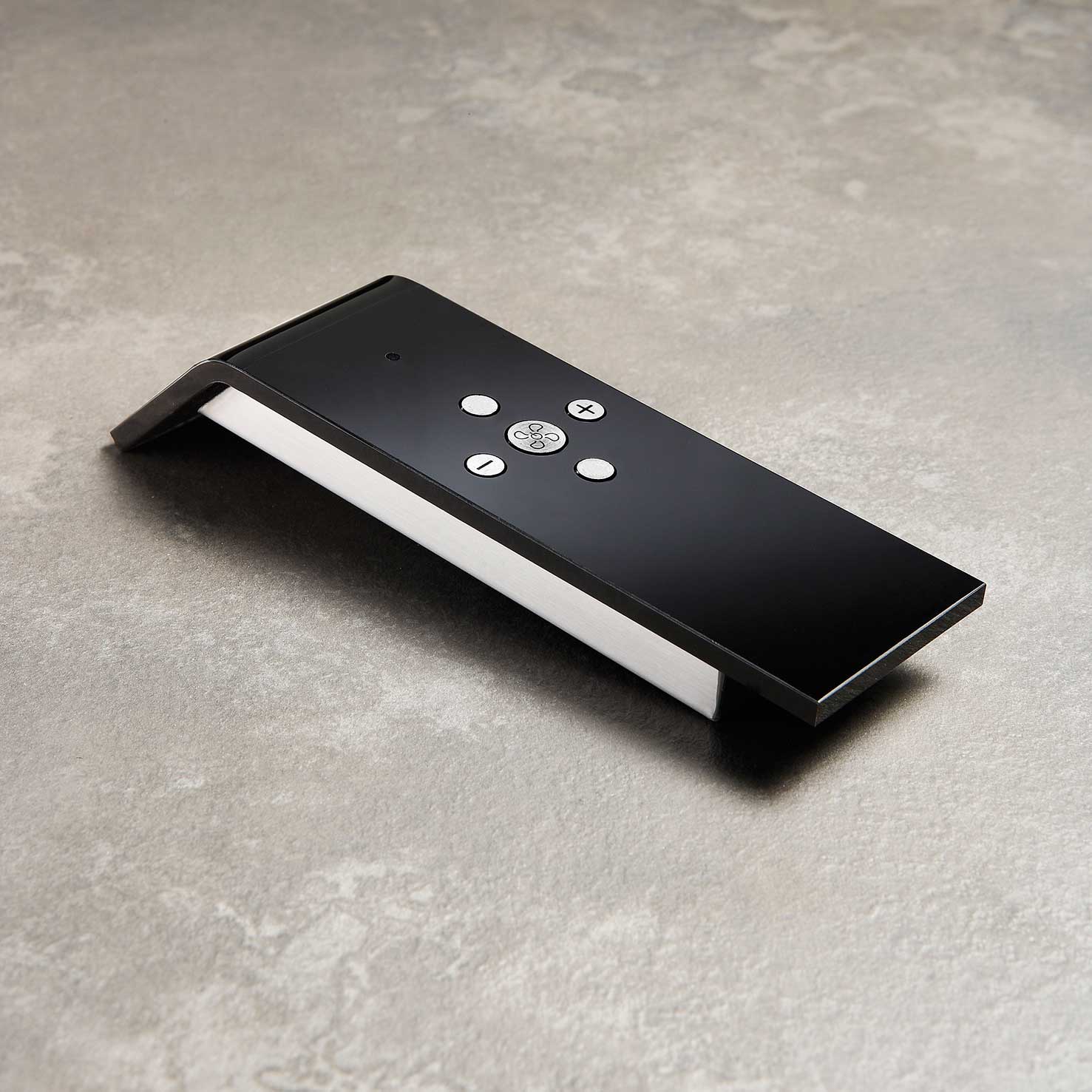

Delivered with a remote control
NAV Item
Item no.:
2670
NAV Item
EAN:
8033717411212
Main
Brand:
Eico
Finish
Finish:
White / Crystal white glass

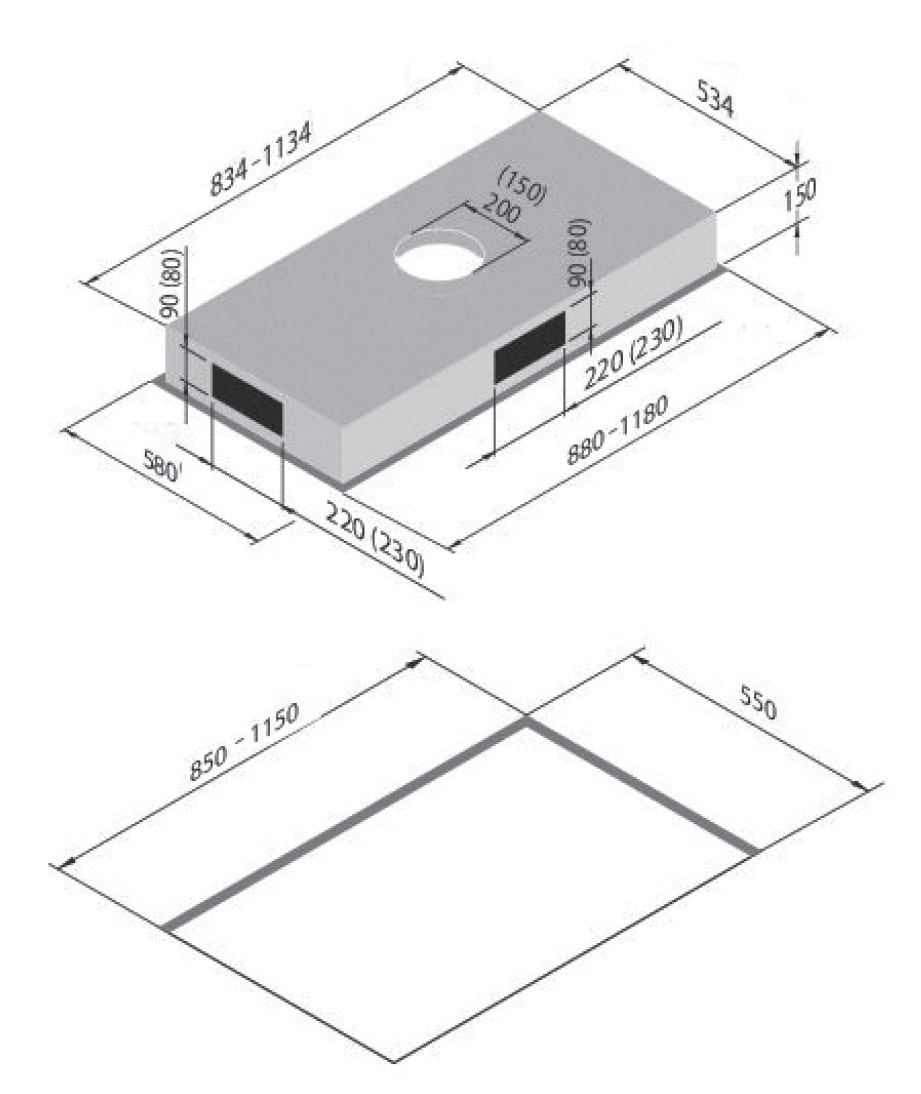

Dimensions
Product (WxDxH):
1200 x 580 x 150
mm
Operation
Operation:
Remote control
Operation
No of Levels:
3
levels
Operation
Intensive levels:
1 intensive
levels
Dimensions
Built-in (WxDxH):
150
mm
Operation
Remote Included:
Yes
Product
Remote Available:
Yes
Dimensions
Air Outlet:
Ø200 / Ø150
mm
Dimensions
Air Outlet Side:
90x220
mm
Capacity
Airflow min-max:
250 - 574
m3/h
Capacity
Airflow (intensive):
830
m3/h
Product
Noise Level:
48 - 61
dB(A)
Product
Lighting:
4 x 1,2 (LED)
Montage
Built In model:
Yes
Energy
Energy Class:
Energy
Energy (air):
B
Energy
Energy (light):
A
Energy
Energy (filter):
F
Energy
Energy consumption:
72
kWh/Year
Text
120 cm white glass ceiling hood for external motor, with perimeter extraction and EicoLink.
Text
Note:
External motor ordered separately. Extraction from the sides - Remember ducting tube 90x220 (4500) and connection (4505)
Cooker hood for internal fitting in ceiling
Often, it will be appropriate to turn on the cooker hood on the lowest setting 5-10 minutes before starting to cook, after which the exhaust is increased when more fumes and vapours are starting form. When the cooking is completed, the strength of the exhaust can be reduced once more, and one can let the cooker hood run for an additional 5-10 minutes at this strength.
Eicolink
Eicolink is an integrated combination system with a wireless connection between hob and cooker hood. The system is controlled with a remote in the hob, which can operate the cooker hoods fitted with the Eicolink logo. The cooker hood and hob can also be installed individually and will then function as normal units. It is always possible to operate the cooker hood manually.
Model with external engine
The cooker hood can be installed with an external engine, that can be placed on the ceiling or on an outside wall.
Delayed switch-off - 10 min
A part of EICO's products utilises delayed switch-off, a timer-function which starts after the cooking ends, and automatically turns off after a set amount of time.
Perimeter aspiration
With perimeter aspiration, the air is effectively and quietly sucked up through narrow furrows in the ornamental panel.
Indicator for cleaning/change of filters
Displays a signal when filters need to be cleaned.
