EicolinkEicolink is an integrated combination system with a wireless connection between hob and cooker hood. The system is controlled with a remote in the hob, which can operate the cooker hoods fitted with the Eicolink logo. The cooker hood and hob can also be installed individually and will then function as normal units. It is always possible to operate the cooker hood manually.
Model with external engineThe cooker hood can be installed with an external engine, that can be placed on the ceiling or on an outside wall.
Delayed switch-off - 10 minA part of EICO's products utilises delayed switch-off, a timer-function which starts after the cooking ends, and automatically turns off after a set amount of time.

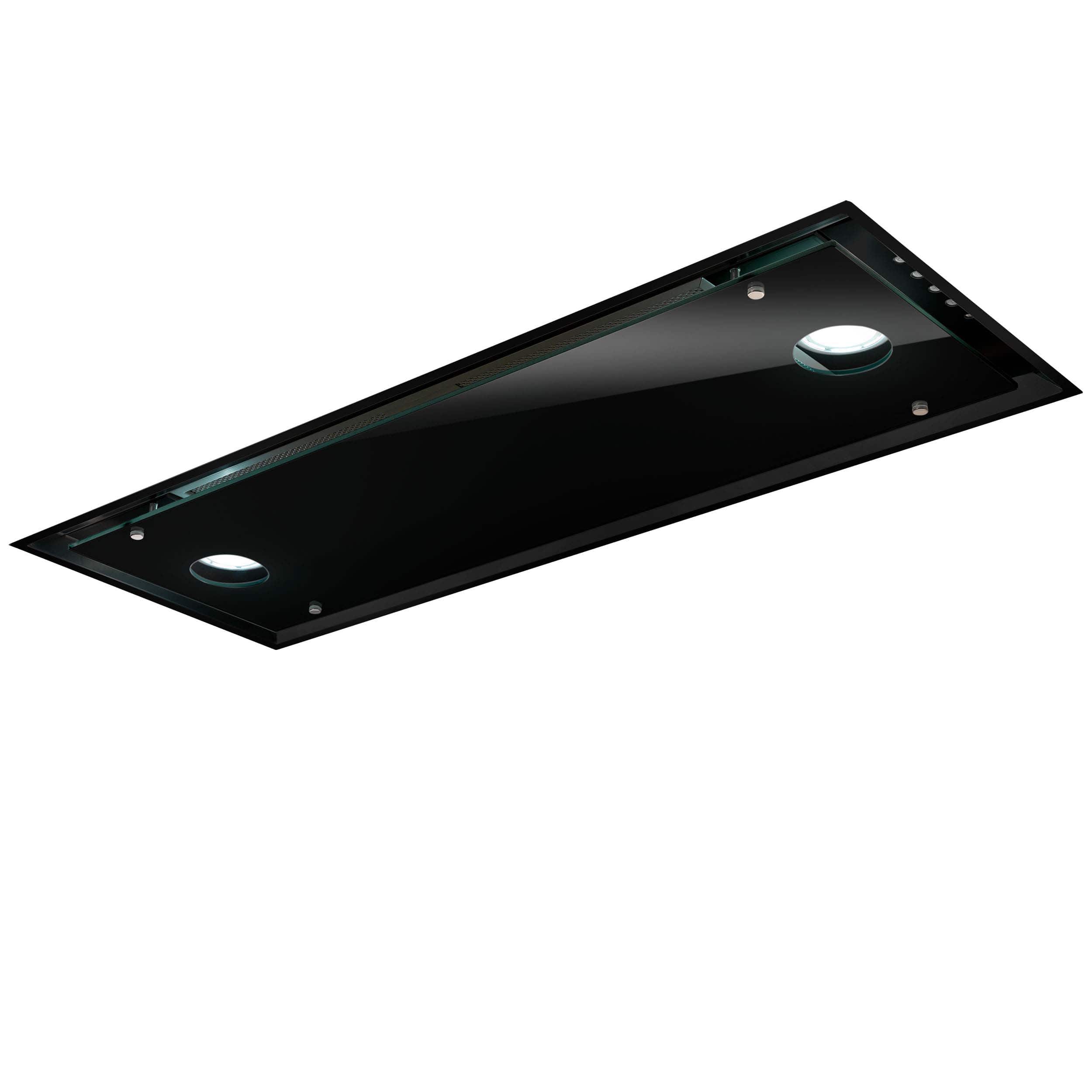

Aida 80 LED N SM is the perfect choice for the modern kitchen. The sleek black glass and discreet LED lights create an elegant look. The external motor makes it ideal where maximum noise reduction is desired. The hood has energy class A, ensuring low energy use and powerful extraction.
Features
Highlights:
Kitchen Design Collection
Insert for internal fitting in top cupboard
Eicolink
Model with external engine
Backwards facing air outlet is an option
Delayed switch-off - 10 min
Perimeter aspiration
Indicator for cleaning/change of filters
Remote control & chimney kit can be bought as extra equipment
NAV Item
Item no.:
6324
NAV Item
EAN:
8033717417474
Sales
Range:
Kitchen Design Collection
Main
Brand:
Eico
Finish
Finish:
Black / Black glass
Montage
Montage:
Integrated hoods to be hidden under your kitchen cabinet
Dimensions
Product (WxDxH):
734 x 272 x 93
mm
Operation
Operation:
Soft touch control
Eicolink for remote control via Link hob
Operation
No of Levels:
3
levels
Operation
Intensive levels:
1 intensive
levels
Product
Remote Available:
Yes
Montage
Backwards facing air outlet:
Yes
Dimensions
Air Outlet:
90x220
mm
Capacity
Airflow min-max:
322 - 516
m3/h
Capacity
Airflow (intensive):
573
m3/h
Product
Noise Level:
52 - 64
dB(A)
Product
Lighting:
2 x 1,2 (LED)
Montage
Built In model:
Yes
Energy
Energy Class:
Energy
Energy (air):
B
Energy
Energy (light):
A
Energy
Energy (filter):
C
Energy
Energy consumption:
67
kWh/Year
Text
Black glass hood with LED lighting and option for external motor – energy class A
Text
Note:
External motor can be bought separately. REMEMBER flat channel (4500)
Kitchen Design Collection
This product is sold in physical kitchen stores
Insert for internal fitting in top cupboard
Often, it will be appropriate to turn on the cooker hood on the lowest setting 5-10 minutes before starting to cook, after which the exhaust is increased when more fumes and vapours are starting form. When the cooking is completed, the strength of the exhaust can be reduced once more, and one can let the cooker hood run for an additional 5-10 minutes at this strength.
Eicolink
Eicolink is an integrated combination system with a wireless connection between hob and cooker hood. The system is controlled with a remote in the hob, which can operate the cooker hoods fitted with the Eicolink logo. The cooker hood and hob can also be installed individually and will then function as normal units. It is always possible to operate the cooker hood manually.
Model with external engine
The cooker hood can be installed with an external engine, that can be placed on the ceiling or on an outside wall.
Backwards facing air outlet is an option
It is possible to lead the air outlet directly backwards from the cooker hood.
Delayed switch-off - 10 min
A part of EICO's products utilises delayed switch-off, a timer-function which starts after the cooking ends, and automatically turns off after a set amount of time.
Perimeter aspiration
With perimeter aspiration, the air is effectively and quietly sucked up through narrow furrows in the ornamental panel.
Indicator for cleaning/change of filters
Displays a signal when filters need to be cleaned.
