EicolinkEicolink is an integrated combination system with a wireless connection between hob and cooker hood. The system is controlled with a remote in the hob, which can operate the cooker hoods fitted with the Eicolink logo. The cooker hood and hob can also be installed individually and will then function as normal units. It is always possible to operate the cooker hood manually.
Model with external engineThe cooker hood can be installed with an external engine, that can be placed on the ceiling or on an outside wall.
Delayed switch-off - 10 minA part of EICO's products utilises delayed switch-off, a timer-function which starts after the cooking ends, and automatically turns off after a set amount of time.
Perimeter aspirationWith perimeter aspiration, the air is effectively and quietly sucked up through narrow furrows in the ornamental panel.

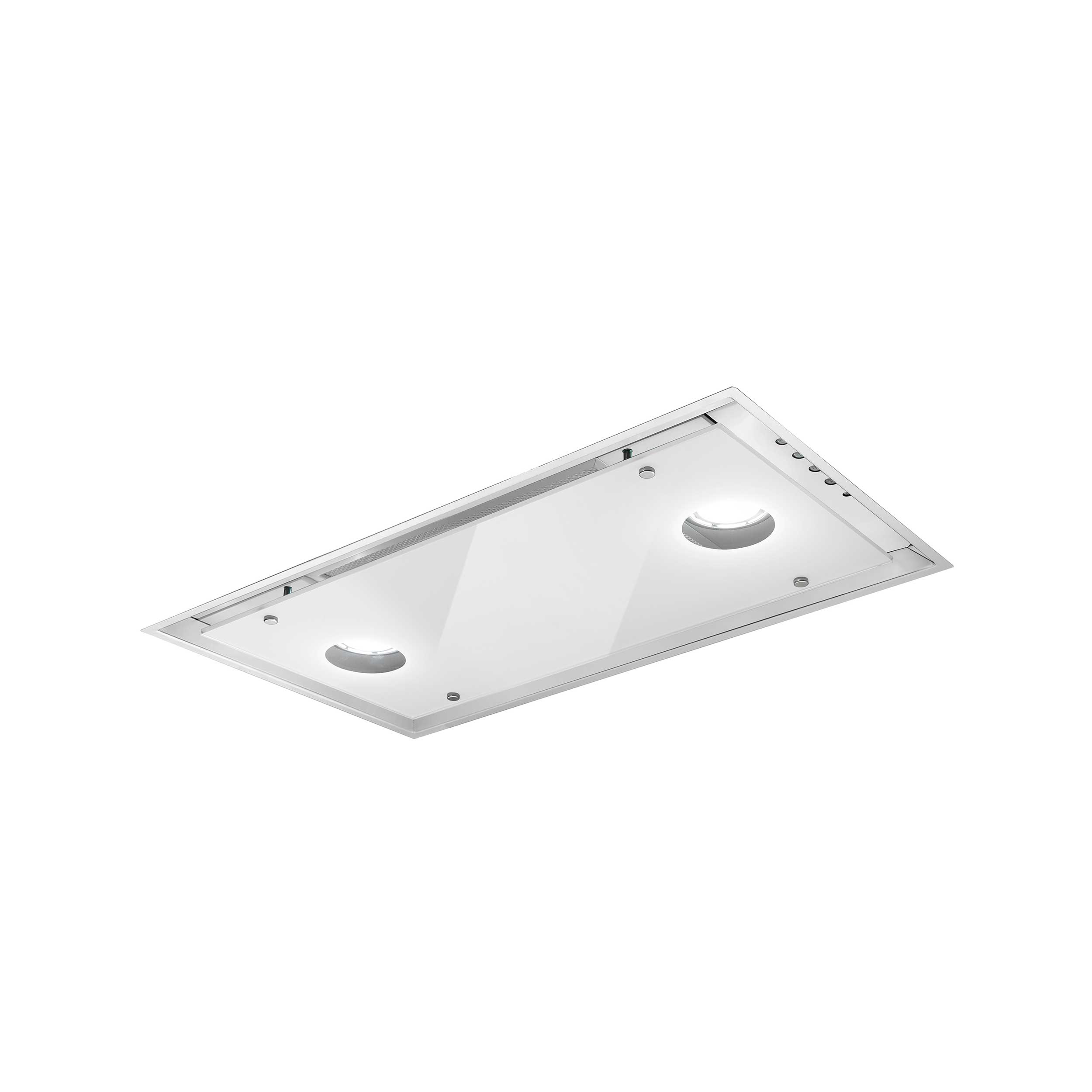

Aida 60 LED W SM is an elegant solution for cabinet integration – ideal where minimal noise is desired. The external motor can be placed away from the kitchen, providing a quiet and comfortable environment. The white glass front and integrated LED lights create a modern look. The model has energy class A, ensuring low consumption and high efficiency.
Features
Highlights:
Kitchen Design Collection
Eicolink
Insert for internal fitting in top cupboard
Model with external engine
Delayed switch-off - 10 min
Perimeter aspiration
Indicator for cleaning/change of filters
Remote control & chimney kit can be bought as extra equipment
Backwards facing air outlet is an option
NAV Item
Item no.:
4860
NAV Item
EAN:
8033717417344
Sales
Range:
Kitchen Design Collection
Main
Brand:
Eico
Finish
Finish:
White / Crystal white glass
Montage
Montage:
Integrated hoods to be hidden under your kitchen cabinet
Dimensions
Product (WxDxH):
534 x 272 x 93
mm
Operation
Operation:
Soft touch control
Eicolink for remote control via Link hob
Operation
No of Levels:
3
levels
Operation
Intensive levels:
1 intensive
levels
Dimensions
Built-in (WxDxH):
534 x 272 x 93
mm
Product
Remote Available:
Yes
Montage
Backwards facing air outlet:
Yes
Dimensions
Air Outlet:
90x220
mm
Capacity
Airflow min-max:
322 - 516
m3/h
Capacity
Airflow (intensive):
573
m3/h
Product
Noise Level:
51 - 63
dB(A)
Product
Lighting:
2 x 1,2 (LED)
Montage
Built In model:
Yes
Energy
Energy Class:
Energy
Energy (air):
B
Energy
Energy (light):
A
Energy
Energy (filter):
C
Energy
Energy consumption:
67
kWh/Year
Text
Discreet built-in cooker hood with LED lighting and option for external motor connection for extra quiet operation. Energy class A and EicoLink control provide flexible, modern operation.
Text
Note:
External motor can be bought separately. REMEMBER flat channel (4500)
Kitchen Design Collection
This product is sold in physical kitchen stores
Eicolink
Eicolink is an integrated combination system with a wireless connection between hob and cooker hood. The system is controlled with a remote in the hob, which can operate the cooker hoods fitted with the Eicolink logo. The cooker hood and hob can also be installed individually and will then function as normal units. It is always possible to operate the cooker hood manually.
Insert for internal fitting in top cupboard
Often, it will be appropriate to turn on the cooker hood on the lowest setting 5-10 minutes before starting to cook, after which the exhaust is increased when more fumes and vapours are starting form. When the cooking is completed, the strength of the exhaust can be reduced once more, and one can let the cooker hood run for an additional 5-10 minutes at this strength.
Model with external engine
The cooker hood can be installed with an external engine, that can be placed on the ceiling or on an outside wall.
Delayed switch-off - 10 min
A part of EICO's products utilises delayed switch-off, a timer-function which starts after the cooking ends, and automatically turns off after a set amount of time.
Perimeter aspiration
With perimeter aspiration, the air is effectively and quietly sucked up through narrow furrows in the ornamental panel.
Indicator for cleaning/change of filters
Displays a signal when filters need to be cleaned.
Backwards facing air outlet is an option
It is possible to lead the air outlet directly backwards from the cooker hood.
